WPC-FI3-5LC-020

    WPC-FI3-5LC-020

    Referentie: WPC-FI3-5LC-020

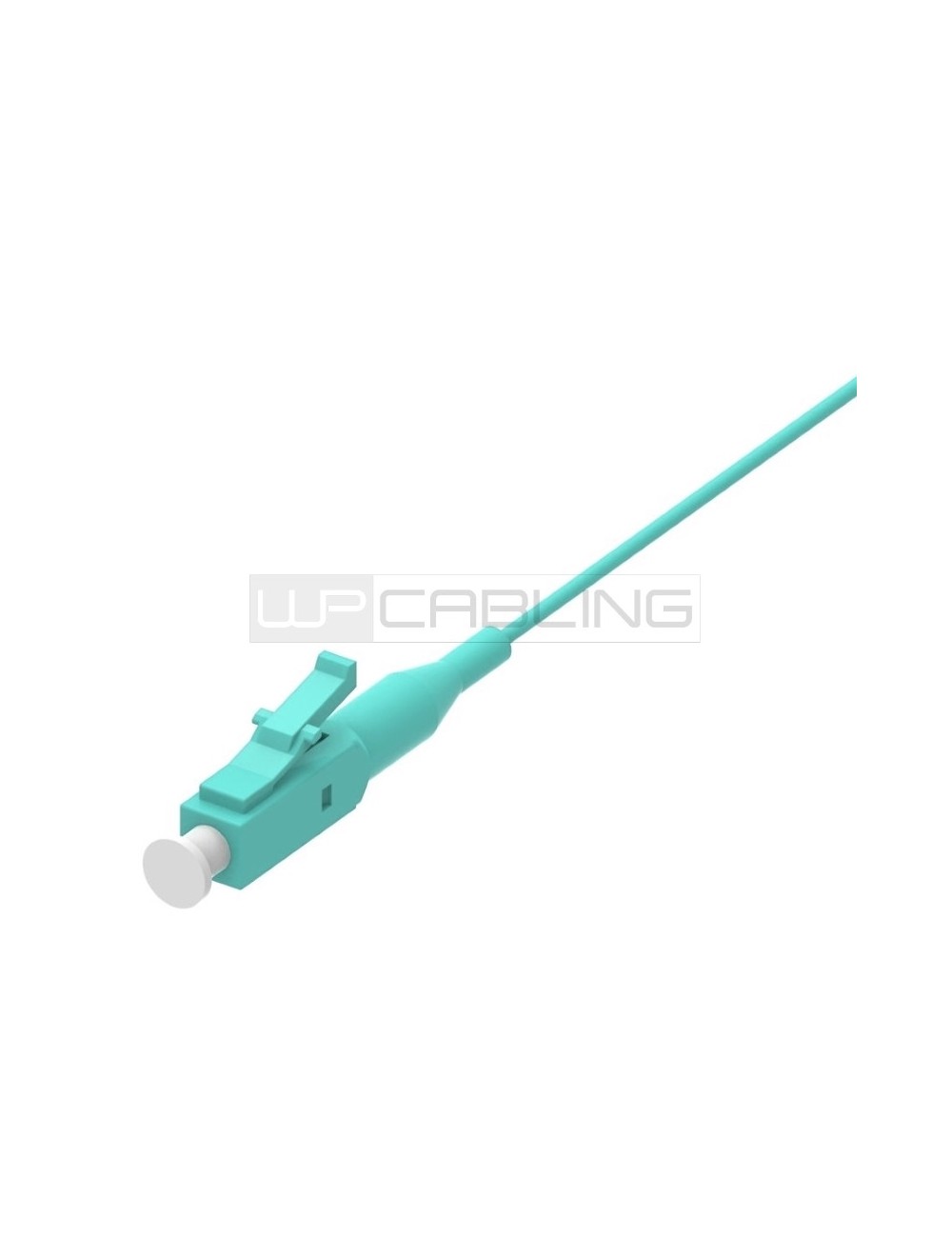

    Glasvezelpigtail OM3 multimode 50/125 µm with LC/UPC connector, LSZH jacket in aqua and 2 m length. WP CABLING Professional Line with controlled optical performance, 3D testing and individual packaging.

    De glasvezelpigtail van de WP CABLING Professional Line is ontworpen voor professionele optische terminaties, met optische en geometrische controles tijdens de productie.

    De OM3 50/125 µm-vezel en LC/UPC-connector maken deze glasvezelpigtail geschikt voor professionele optische infrastructuren.

    Technische specificaties

    • Vezel: OM3 multimode 50/125 µm
    • Configuratie: Simplex
    • Connector: LC/UPC
    • Ferrule: keramisch zirkoniumoxide
    • Mantel: LSZH
    • Opbouw: Tight Buffer
    • Diameter: Ø 0.9 ± 0.1 mm
    • Kleur: aqua
    • Lengte: 2 m
    • Insertion loss: IL ≤ 0.2 dB
    • Return loss: RL ≥55 dB
    • Operating temperature: -25 °C / +80 °C
    • Storage temperature: -20 °C / +65 °C

    Kwaliteitstests in de fabriek

    Reliability tests are carried out and a test report is available.

    IL – Insertion Loss Test

    De insertion-loss-test controleert de demping voor een verbinding met lage verliezen.

    RL – Return Loss Test

    De return-loss-test controleert optische reflecties en de kwaliteit van de verbinding. RL ≥55 dB.

    3D-interferometrische ferruletest

    De 3D-interferometrische test controleert de geometrie van de ferrule, inclusief kromtestraal, apex offset en vezelhoogte, voor een nauwkeurige en gelijkmatige optische terminatie.

    Operationele voordelen

    • Controlled optical performance
    • Optical and geometric checks in production
    • Test report available
    • Individual packaging
    • Geschikt voor professionele optische infrastructuren

    Productdetails

    WPC-FI3-5LC-020

    Datasheet

    Lengte
    2 m
    Categorie
    OM3
    Connectortype A
    LC
    Mantel
    LSZH
    Vezeltype
    Multimodale

    Specifieke referenties

    ean13
    8054392615702
