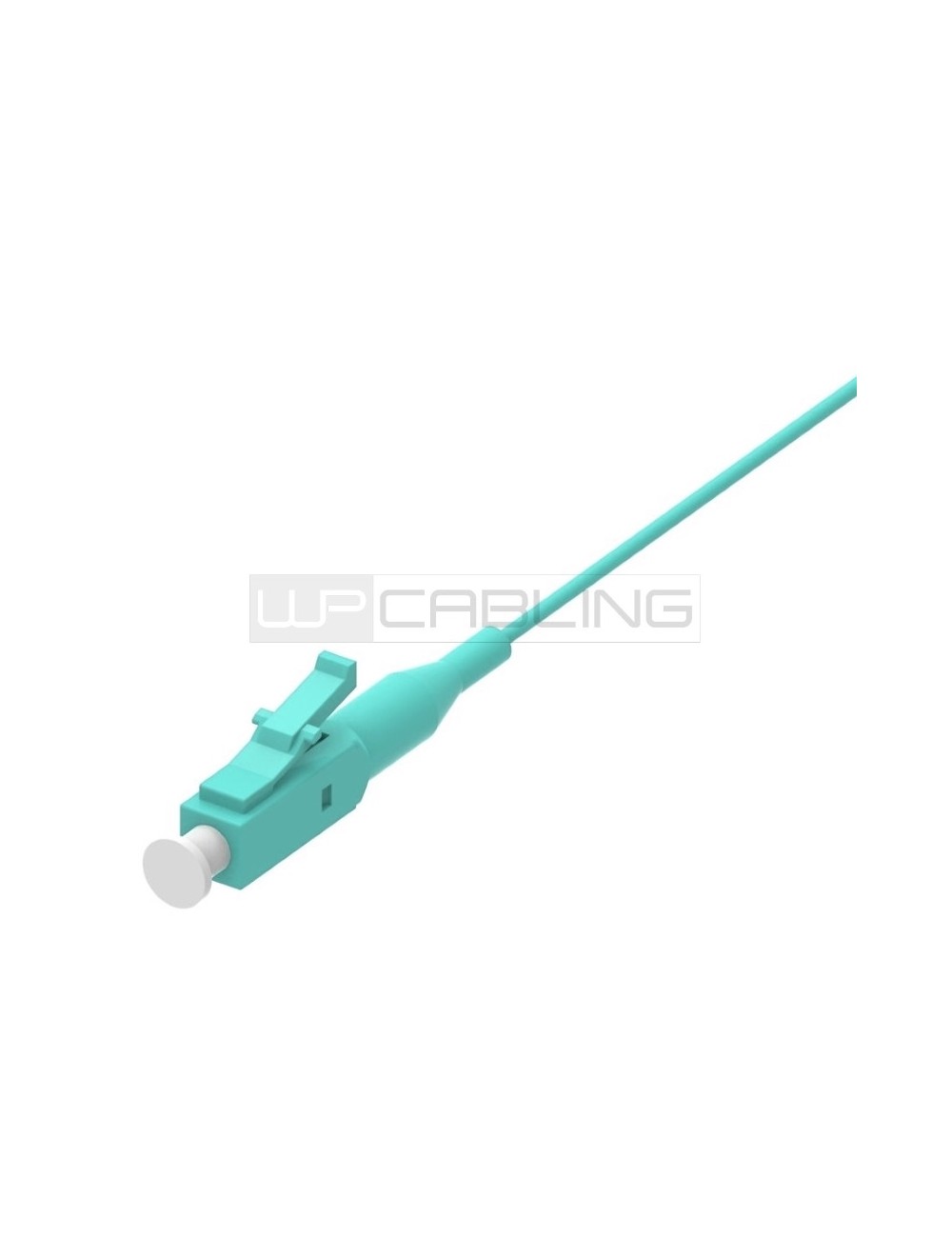

Optical fibre pigtail OM3 multimode 50/125 µm with LC/UPC connector, LSZH jacket in aqua and 2 m length. WP CABLING Professional Line with controlled optical performance, 3D testing and individual packaging.
The WP CABLING Professional Line optical fibre pigtail is designed for professional optical terminations with optical and geometric checks carried out in production.
The OM3 50/125 µm fibre and LC/UPC connector make the pigtail suitable for professional optical infrastructures.
Technical Specifications
Factory Quality Tests
Reliability tests are carried out and a test report is available.
IL – Insertion Loss Test
The insertion loss test checks attenuation to ensure a low-loss connection.
RL – Return Loss Test
The return loss test checks optical reflections and connection quality. RL ≥55 dB.
3D Interferometric Ferrule Test
The 3D interferometric test checks ferrule geometry, including radius of curvature, apex offset and fibre height, to ensure precision and uniformity of the optical termination.
Operational Benefits
