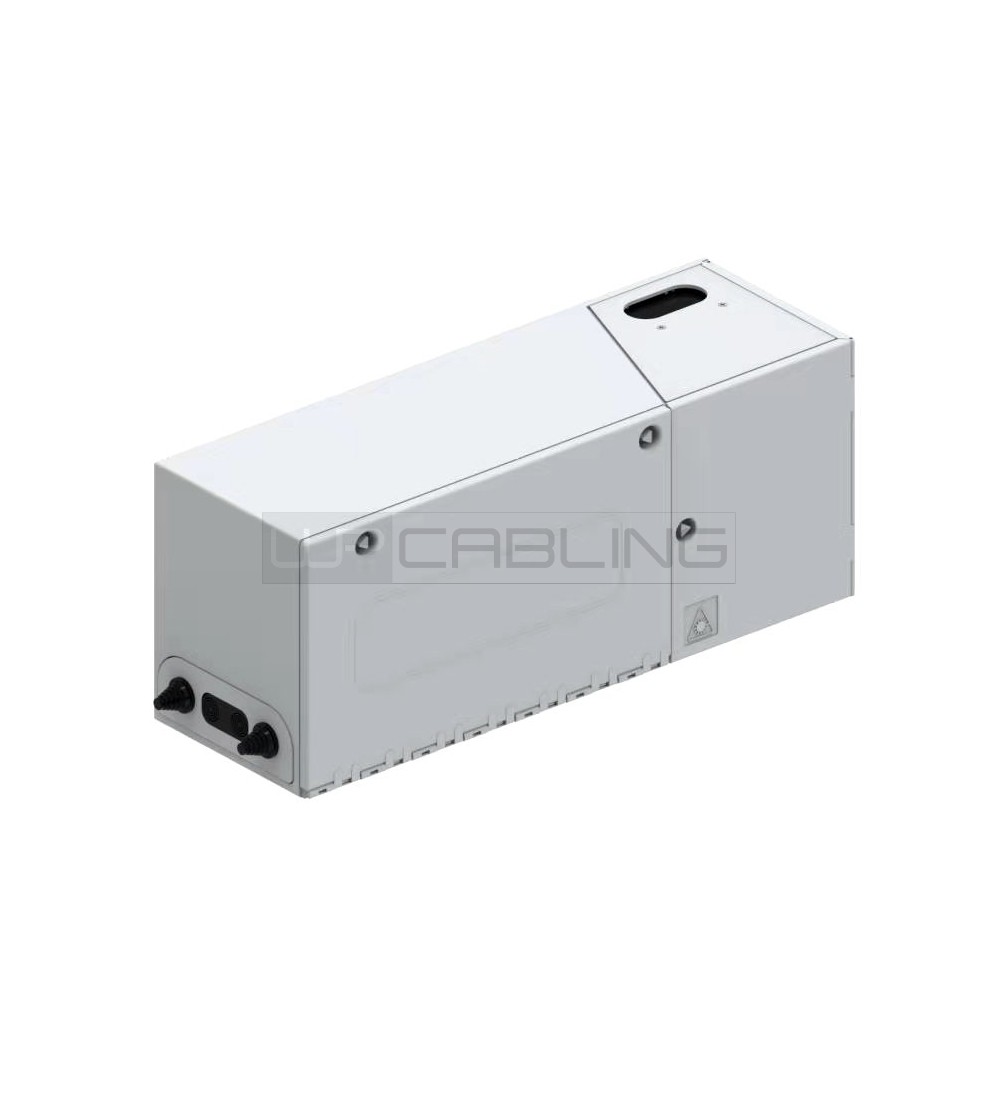

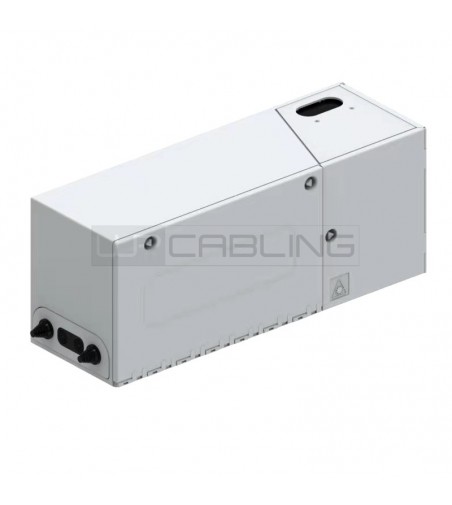

WPC-FCB-I2048

48 ports wall mount distribution box are designed for either to support direct termination or fusion splicing of the fibers. Features designed to save space especially is subdivided into two sections identified as Services Area and Distribution Area.
The box is modular and wall mounted Depending on the needs, it allows the stacking of several modules one on top of the other. It is supplied complete with 6 splice tray for 8/16 fibers. The box can be loaded with SC simplex or LC duplex adapters. The fully loaded distribution box support termination up to 96 fibers.

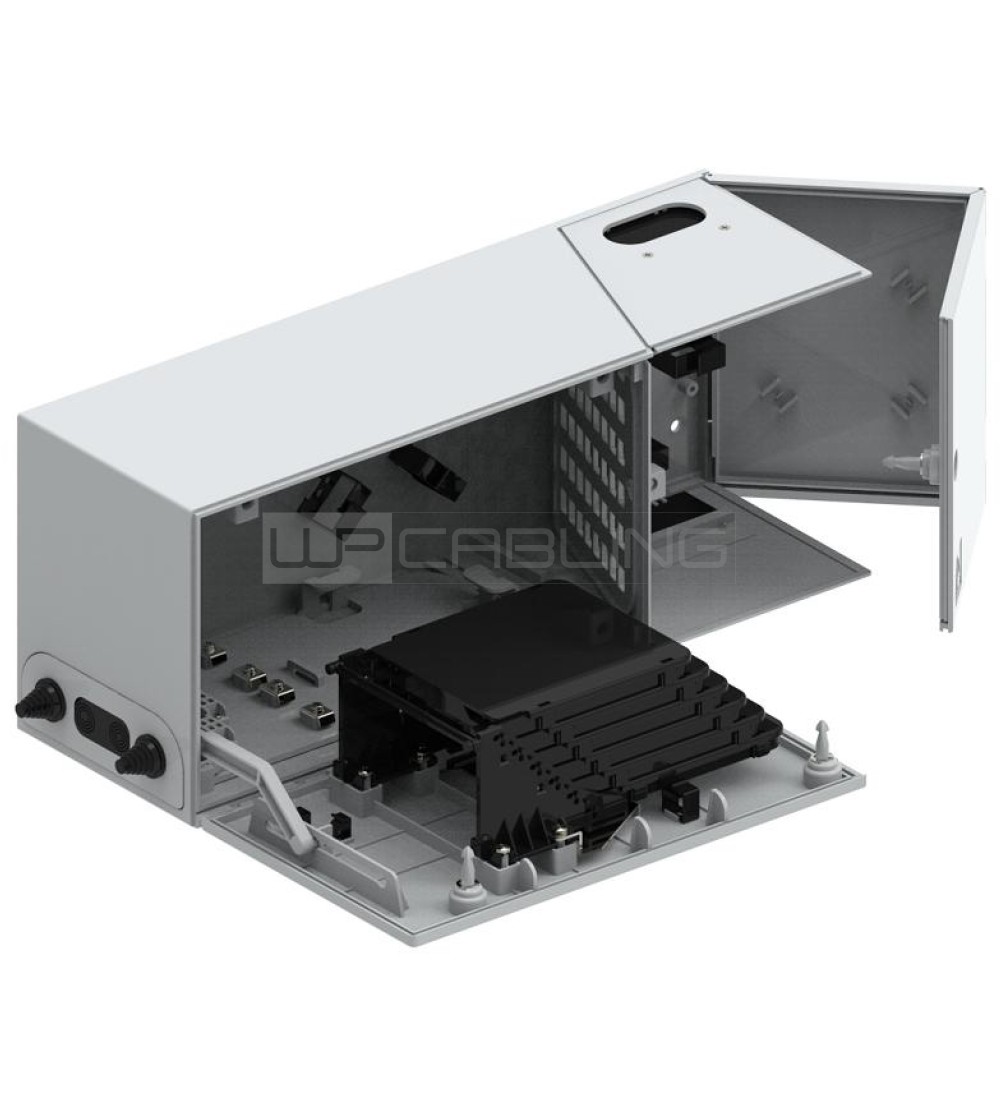

Plastic body divided into two separate dedicated areas respectively to the terminations of the cables and permutations of the risers, closing lid, opening door at 180°, with security key, pre-drilling on the bottom, roof and base for the cable routing, sliding structure for the extraction of trays and modules

- It is the main connection part of all TV, SAT, TVCC and Data services
- Suitable for different adapters: SC simplex, LC duplex
- 6 Splice Tray for of 8/16 fibers inside
- 3 slot for Fiber Splitter PLC-Box type
- Easy management and maintenance
- Dimension: (HxWxD) 181 x 449 x 150,5 mm
- Weight: 3500 gr.
