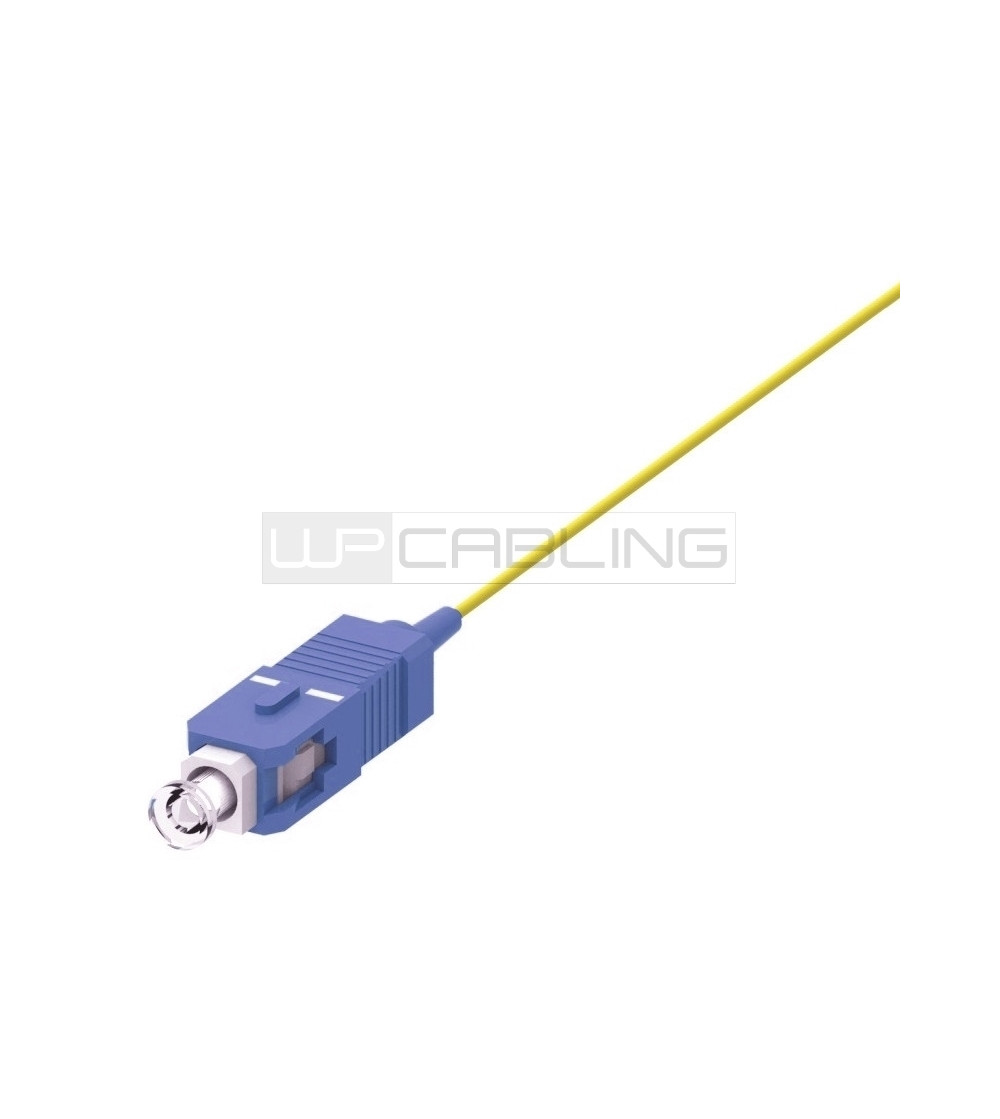

WPC-FI0-9SC-020

Fiber Optic Pigtail OS2 SC 9/125µ G.652D – Simplex

The OS2 SC 9/125µ G.652D Simplex fiber optic pigtail is designed to ensure reliable terminations and high optical performance in FTTH networks, data centers and professional infrastructures.

Thanks to the zirconia ceramic ferrule quality and strict production controls, it represents an ideal solution for installations requiring pigtail low insertion loss and long-term stability.

Technical Specifications

• Fiber type: OS2 singlemode 9/125µ G.652D
• Configuration: Simplex
• Connector: SC
• Maximum insertion loss (IL): ≤ 0.4 dB
• Ferrule: zirconia ceramic
• Outer cable diameter: Ø 0.9 ± 0.1 mm
• Structure: Tight buffer
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 2 meters
• Operating temperature: -25 °C / +80 °C
• Storage temperature: -20 °C / +65 °C

Factory Quality Tests

Each pigtail undergoes strict quality controls to ensure compliance with standards and reliability in professional applications.

Tests performed include:

IL – Insertion Loss Test

Verification of insertion loss to ensure low attenuation connections.

Ideal for applications requiring LC pigtail low insertion loss.

RL – Return Loss Test

Measurement of return loss to ensure surface contact quality and signal stability.

Each product is supplied as RL tested pigtail, ensuring reliable optical performance.

3D interferometric ferrule test

Connector geometry inspection (radius of curvature, apex offset and fiber height) to guarantee precise mating and compliance with industry standards.

This production process ensures low optical losses, reduced reflections and maximum reliability in installations on ODF, fiber enclosures and 19” rack cabinets.

Operational Advantages

• Consistent and certified optical performance
• Low insertion loss
• High connection precision
• Ideal for data centers, FTTH and backbone networks
• Compatible with rack systems, ODF and splice enclosures
