    Reference: WPC-FI4-5SC-020

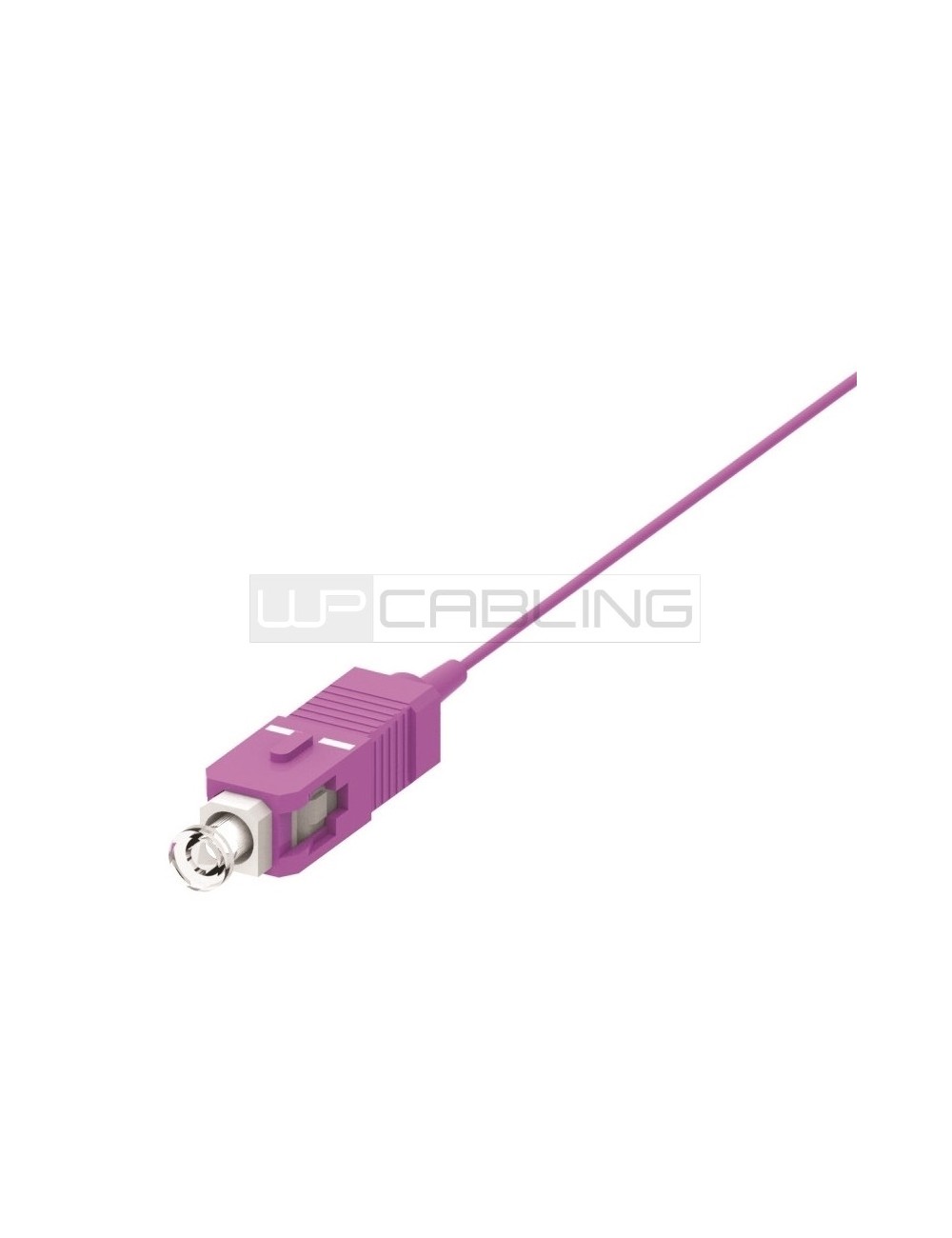

    Optical fibre pigtail OM4 multimode 50/125 µm with SC/UPC connector, LSZH jacket in violet and 2 m length. WP CABLING Professional Line with controlled optical performance, 3D testing and individual packaging.

    The WP CABLING Professional Line optical fibre pigtail is designed for professional optical terminations with optical and geometric checks carried out in production.

    The OM4 50/125 µm fibre and SC/UPC connector make the pigtail suitable for professional optical infrastructures.

    Technical Specifications

    • Fibre: OM4 multimode 50/125 µm
    • Configuration: Simplex
    • Connector: SC/UPC
    • Ferrule: ceramic zirconia
    • Jacket: LSZH
    • Structure: Tight Buffer
    • Diameter: Ø 0.9 ± 0.1 mm
    • Colour: violet
    • Length: 2 m
    • Insertion loss: IL ≤ 0.2 dB
    • Return loss: RL ≥55 dB
    • Operating temperature: -25 °C / +80 °C
    • Storage temperature: -20 °C / +65 °C

    Factory Quality Tests

    Reliability tests are carried out and a test report is available.

    IL – Insertion Loss Test

    The insertion loss test checks attenuation to ensure a low-loss connection.

    RL – Return Loss Test

    The return loss test checks optical reflections and connection quality. RL ≥55 dB.

    3D Interferometric Ferrule Test

    The 3D interferometric test checks ferrule geometry, including radius of curvature, apex offset and fibre height, to ensure precision and uniformity of the optical termination.

    Operational Benefits

    • Controlled optical performance
    • Optical and geometric checks in production
    • Test report available
    • Individual packaging
    • Suitable for professional optical infrastructures

    Product Details

    WPC-FI4-5SC-020

    Data sheet

    Length
    2 m
    Category
    OM4
    Connector type A
    SC
    Jacket
    LSZH
    Fiber type
    Multimode

    Specific References

    EAN13
    8054392615672
