WPC-FI0-9SCA-010S96

Name: WPC-FI0-9SCA-010S96
Brand: WP Rack e Cabling
SKU: WPC-FI0-9SCA-010S96
Rating: 5 (1 reviews)

Reference: WPC-FI0-9SCA-010S96

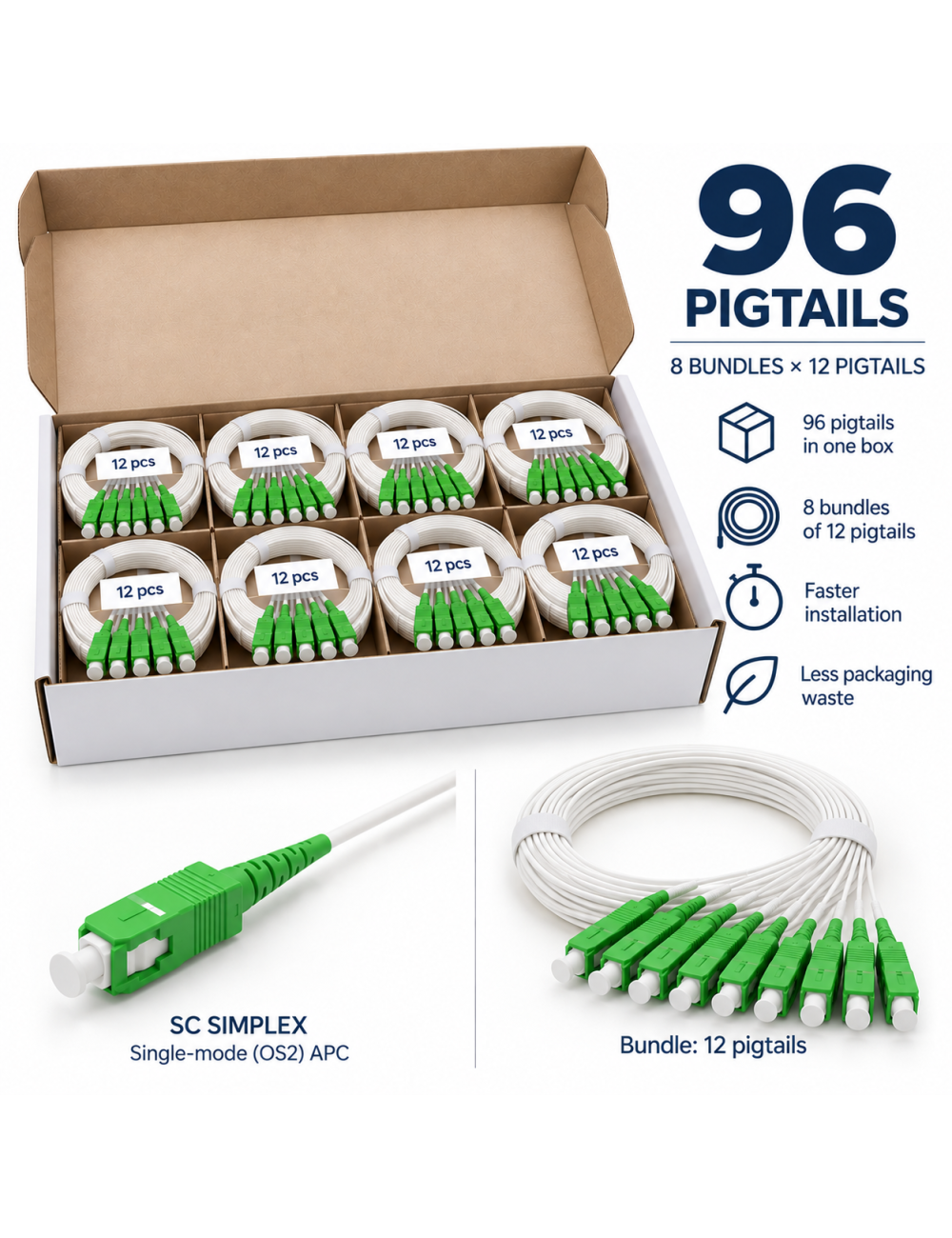

Optical fibre pigtail OS2 single-mode 9/125 µm Simplex with SC/APC connector, LSZH jacket and 1 m length. Essential Line set of 96 pieces, arranged in 8 bundles of 12 pigtails, with IL < 0.35 dB, ideal for high-volume professional installations.

Description
Product Details

The WP CABLING Essential Line SC/APC singlemode pigtail is designed for fiber optic installations where reliability, ease of handling and cost optimization are key requirements.

Supplied in a 96-piece bulk set, divided into 8 bundles of 12 pigtails, it helps speed up installation, reduce packaging waste and improve material organization during cabling operations.

The SC/APC connector with zirconia ceramic ferrule provides low insertion loss and excellent performance in OS2 singlemode networks, making it ideal for FTTH, Data Centers, ODFs, fiber optic distribution boxes and structured cabling applications.

The Essential Line has been developed for high-volume projects, offering an excellent balance between performance, reliability and cost-effectiveness.

Key Features

OS2 9/125 Singlemode Pigtail
SC/APC Simplex Connector
Zirconia Ceramic Ferrule
LSZH Jacket
0.9 mm Tight Buffer
1 meter Length
White Fiber
96-piece Bulk Packaging
8 Bundles of 12 Pigtails
Insertion Loss (IL) < 0.35 dB

Ideal for

Structured Cabling
Data Centers
FTTH Networks
ODFs
Fiber Optic Distribution Boxes
Fiber Optic Cable Termination
Telecommunication Networks
High-Volume Professional Installations

Product Details

Reference WPC-FI0-9SCA-010S96

Data sheet

Length: 1 m
Category: OS2
Connector type A: SC/APC
Jacket: LSZH
Fiber type: Singlemode

Specific References

EAN13: 8052101435887
