WPN-AFS-S241100-B
    WP Rack

    WPN-AFS-S241100-B

    Reference: WPN-AFS-S241100-B

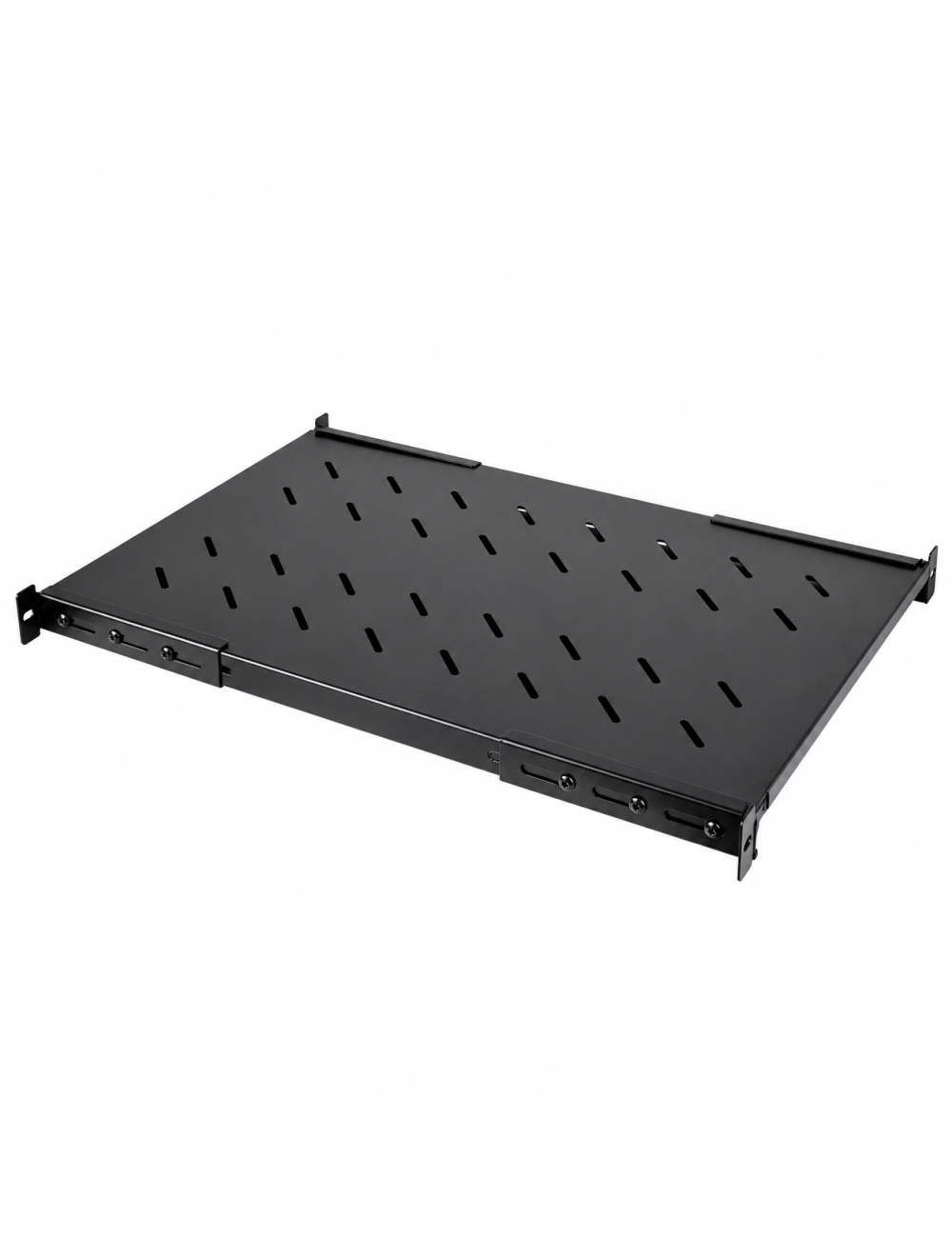

    19" 4-point fixed rack shelf for cabinets 1000 mm deep, with brackets adjustable from 650–770 mm and load capacity up to 65 kg.

    The WP RACK 4-point fixed shelf is designed for standard 19" rack cabinets with a nominal depth of 1000 mm. The depth-adjustable mounting brackets allow the installation distance to be adapted within the 650–770 mm range.

    The cold-rolled SPCC steel structure, with black RAL 9005 finish, provides a stable support surface for non-rackmount equipment and other devices suitable for the available dimensions and load. The perforated surface promotes airflow and contributes to heat dissipation.

    Main features:

    • Type: 4-point fixed shelf with depth-adjustable mounting brackets
    • Compatibility: standard 19" rack cabinets 1000 mm deep
    • Adjustment range: 650–770 mm
    • Dimensions: 653 × 486 × 44 mm
    • Material: cold-rolled SPCC steel
    • Mounting: 4 points with depth-adjustable brackets
    • Load capacity: up to 65 kg
    • Ventilation: perforated surface
    • Colour: black RAL 9005
    • Weight: 6,6 kg

    Product Details

    WPN-AFS-S241100-B

    Data sheet

    Color
    black
    Unit
    1
    Compatibility
    19" standard
    Shelf type
    4 fixing points

    Specific References

    EAN13
    8032958180154
