WPC-KEY-6UP-TL/BL

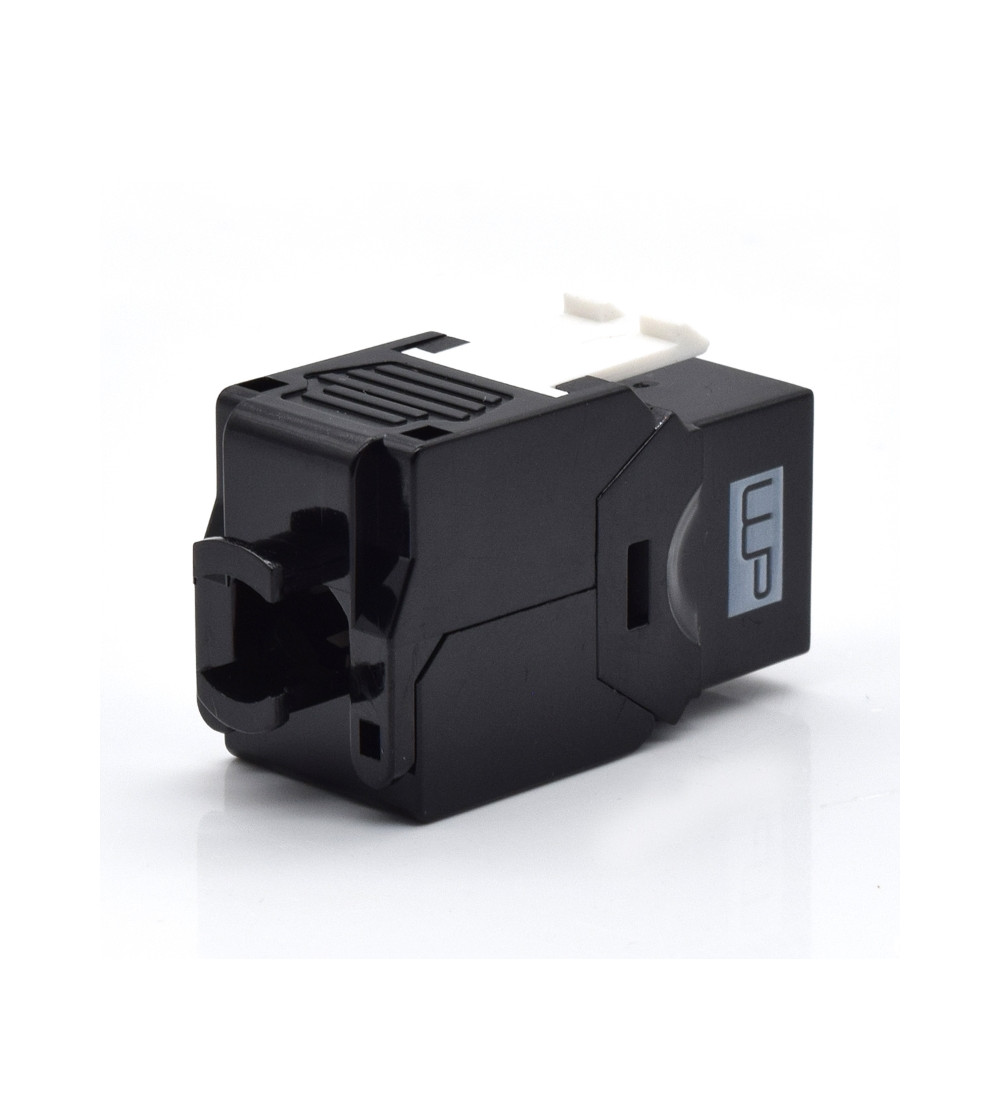

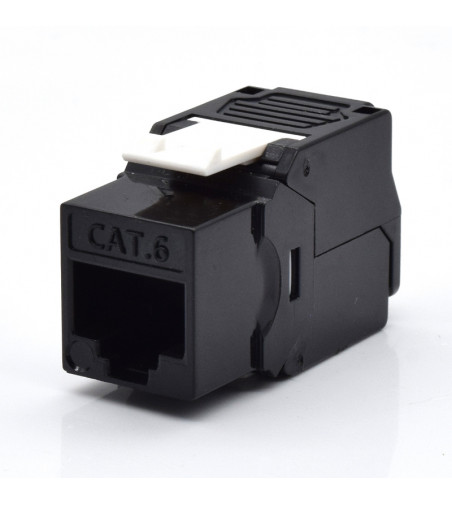

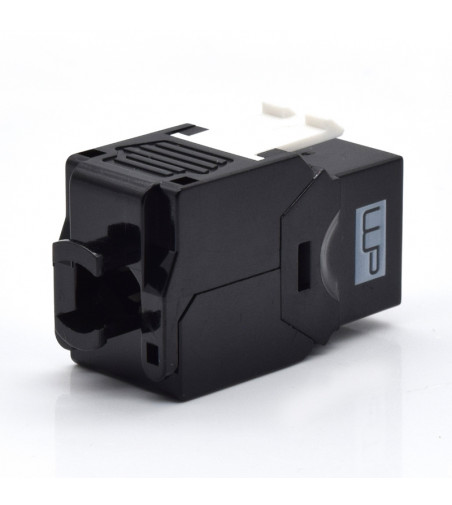

The WP CABLING Professional 180° UTP Keystone Jack is designed to ensure fast, secure and repeatable terminations in structured cabling installations.

The tool-less design ensures simple and efficient installation while maintaining professional performance standards.

Fast and Reliable Tool-Less Termination

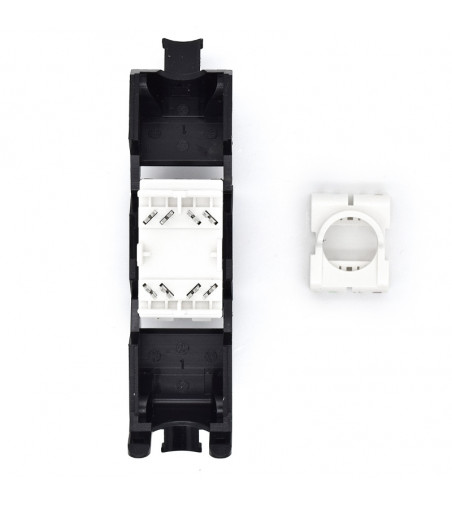

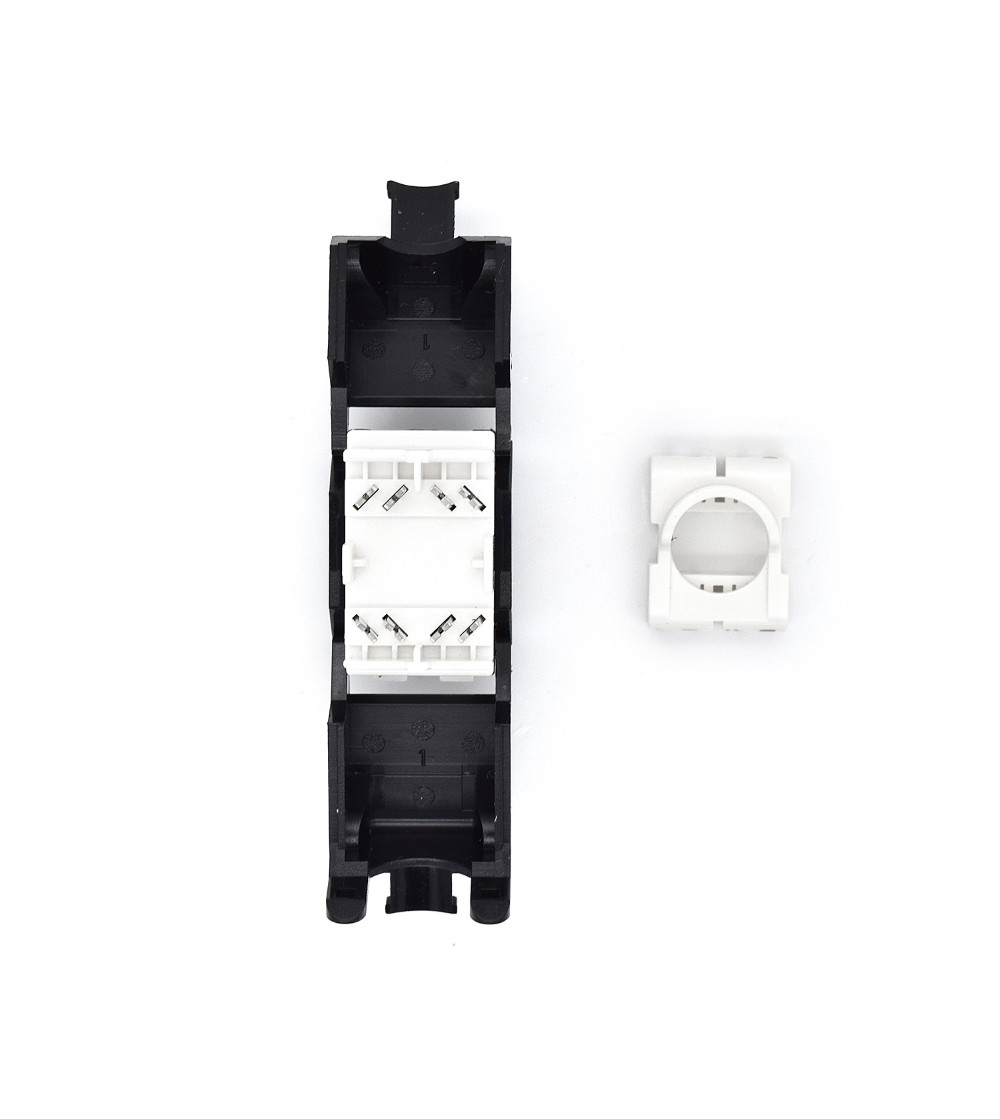

Cable termination is carried out through a simple three-step process:

• Prepare the cable pairs
• Position them into the color-coded termination cap
• Snap the cap onto the IDC block until fully secured

This system ensures:

• consistent termination quality
• reduced installation time
• minimized risk of wiring errors
• no need for punch-down tools

Compact 180° Design

The 180° cable entry optimizes space management inside rack cabinets and wall plates.

Thanks to the compact structure, up to 24 modules can be installed in a 1U keystone patch panel.

High-Quality Materials

Manufactured in high-impact flame-retardant plastic certified UL 94V-0, the jack ensures:

• high mechanical resistance
• long-term durability
• compliance with safety standards
• reliability in professional environments

Network Compatibility

Suitable for:

• Gigabit Ethernet
• 5 Gigabit Ethernet (Cat. 6)
• PoE and PoE++ applications

Individual Professional Packaging

Each keystone jack is individually packaged in a practical bag with a quick side tear opening (easy open strap).

This ensures:

• product protection during transport and storage
• quick and easy access during installation
• improved warehouse management

The packaging is designed for immediate on-site use and supports professional workflows.

Specifications

• Transmission properties: Category 6
• Application range: Up to 250 MHz, 5GBase-T
• Standards: ISO/IEC 11801:2002/Amd.2:2010, ISO/IEC 60603-7, ANSI/TIA 568-C.2, YD/T 926.3-2009
• RJ45 jack, 8P8C
• Cable fixing by cable ties (included)
• Tool-less installation according to EIA/TIA 568 A & B color code
• RJ45 housing material: high-impact flame-retardant plastic UL 94V-0
• PCB: FR4, 1.2 mm
• Operating temperature: -40°C to +68°C
• Mating cycles female: > 750 cycles according to ISO/IEC 11801, IEC 60603-7-5
• Clamp: > 200 cycles according to ISO/IEC 11801, IEC 60603-7-5
• Conductor support: 23–26 AWG stranded and solid conductor
